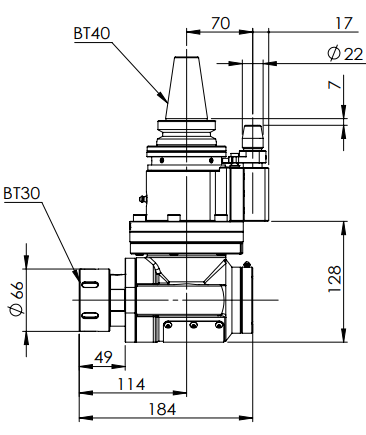

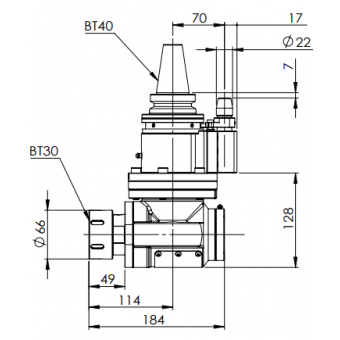

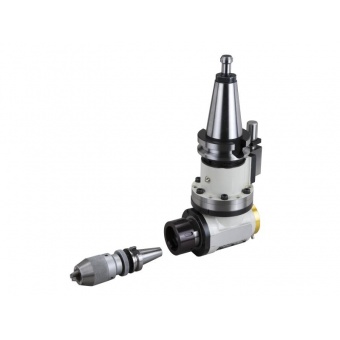

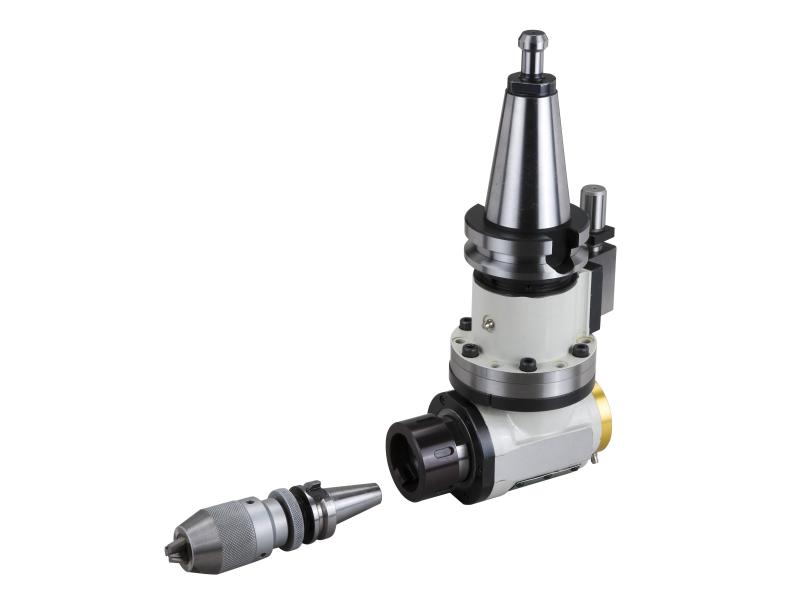

◎?BT40-BT30 90°Angle Head (AHB Type)
◎?Run-out：0.002 mm
◎?Material：Ductile Cast Iron
◎?R.P.M.：Max. 6000 RPM
◎?Torque : Max. 70 Nm
◎?Drilling : Max. 20 mm
◎?Tapping : Max. M16
◎?Gear Ratio：1：1
◎?Standard Accessory：Hook Spanner, Open End Wrench, BT Nut
◎?Output Rotation : Reverse to Input Rotation
◎ The body is made of Ductile Cast Iron.
◎ High strength steel; stable machining.
◎?The output interface of BT30 ensures wide-range application with various BT30 tool holders.
